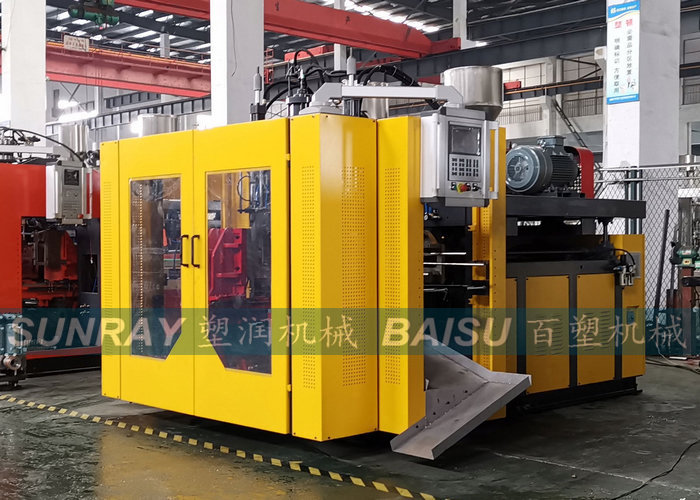

1L/2L/3L/4L/5L HDPE Bottle Jerrican Jerrycan Mafufacturing Machine 5 Liter Container Jerry Can Blow Moulding Machine
QUICK VIEWS
| 1. SRB70D-1 specially used for PE & PP bottles, jerrycan, kettles, containers and jars from 1L to 5L. 2. Machine total control system with convenient operation page design suitable for remote technical support. 3. Adopt pressure / flow double proportion control for hydraulic system, insure platen moving speed & smoothness. 4. The output for 150 grams hdpe square bottle is 225 Pcs/hour, the daily capacity is about 5300 bottles. |
PARAMETER LIST
| Machine Model | Plastic Bottle Making Machine |
| Max Product Volume | 5 L |
| Machine Weight | 5.5 Tons |
| Machine Size | 3.8 x 2.2 x 2.5 m |
| Screw Diameter | 70 mm |
| Plasticizing Capacity | 90 KG |
| Clamping Force | 68 KN |
| Platen Size | 320 x 390 mm |
| Platen Opening Stroke | 150~500 mm |
| Max Mould Size | 360 x 360 mm |
| Head type | Continuous extrusion single head |
| Max die diameter | 180 mm |
| Material Cutting Method | Hot Cutting |
| Max Die Diameter | 100 mm |
| Total Power | 48.5 KW |
| Average Energy Consumption | 31.5 KW |

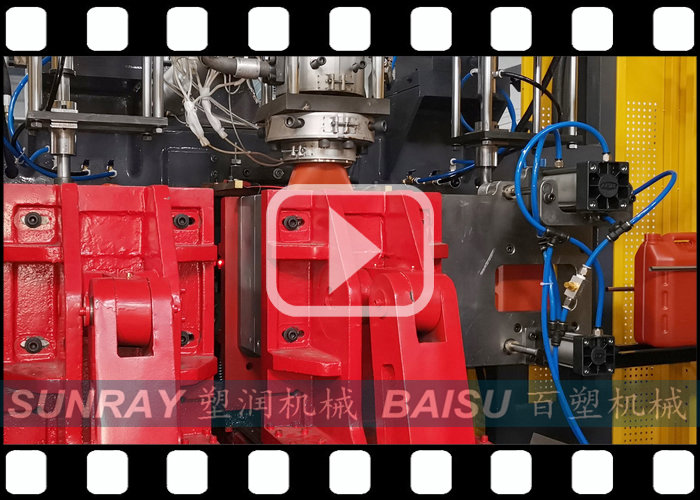

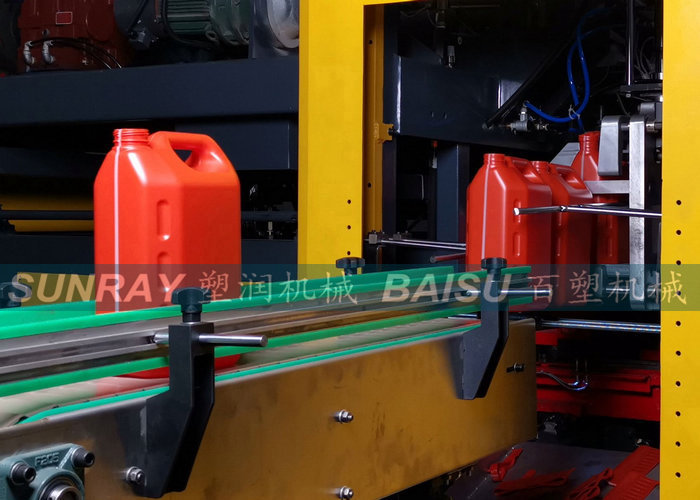

Click picture to see SRB70D production video for 5L Jerrycan with View Stripe
PRODUCTION ARRANGEMENT
| 1. Machine Foundation Size: 3.5 x 2 m 2. Production Area: 7 x 5 m 3. Minimum Workshop Height: 3.0 m 4. Air Supply Requirement: 1.0m3/min, 0.6Mpa 5. Water Supply Requirement: 8 Tons 6. Machine Power Consumption: 31.5 KW 7. Production Line Power Consumption: 45 KW 8. Whole Line Electricity Arrangement: 250 Amps 9. Minimum Workers Number: 2 Workers |
MACHINE CONFIGURATIONS
1. Control Unit: WISETECH total machine programmable controller controller and ture colorful touch panel. English parameter process setting, state monitoring and products counting are convenient and intuitionistic. PLC automatic temperature control model.
2. Hydraulic Unit: It adopts international famous Japan YUKEN brand hydraulic valve and seal, proportional control. And has features of high stationarity and reliability, accurate operation, long longevity, quick response and so on.
3. Extrusion Unit: Hard gear surface decelerator; famous Delta inverter adopts Italian technology; Screw speed regulation adopts variable-frequency speed regulation control system. It has the features of stable rotate speed, powerful power, energy-saving and so on. Mixing screw has wide applicability to raw materials and the plasticization quality is even better. Energy-saving machine barrel and A-alloy heaters are adopted for heating
4. Die Head Unit: With single cylinder material-center-in accumulator head, is smooth and dependable. This die head adopts German technology and is made by special imported steel.
5. Clamping Unit: Adopts fixed mould open-closing system,fast and balanced.
6. Blow Fitting Unit: Down blowing fitting is equipped.
7. Lifter Unit: Four turbine reducer liter, lifting balance, quick, stable.
8. Electrical Components: All of the electrical components are made in Japan and Taiwan.
PRODUCTION FLOW
The working flow of 1L double station triple head plastic bottles manufacturing machine production flow is basically like this. The PLC in the electronic control case sends the instruction, the hydraulic system receives the instruction, the fuel tank and the motor start to operate, drives the screw to run, and extrudes the embryo through the die head. The opening and closing mold begins to be closed, the needle is blown, cooled, and plastic products are formed.
